◼PRODUCT DESCRIPTION

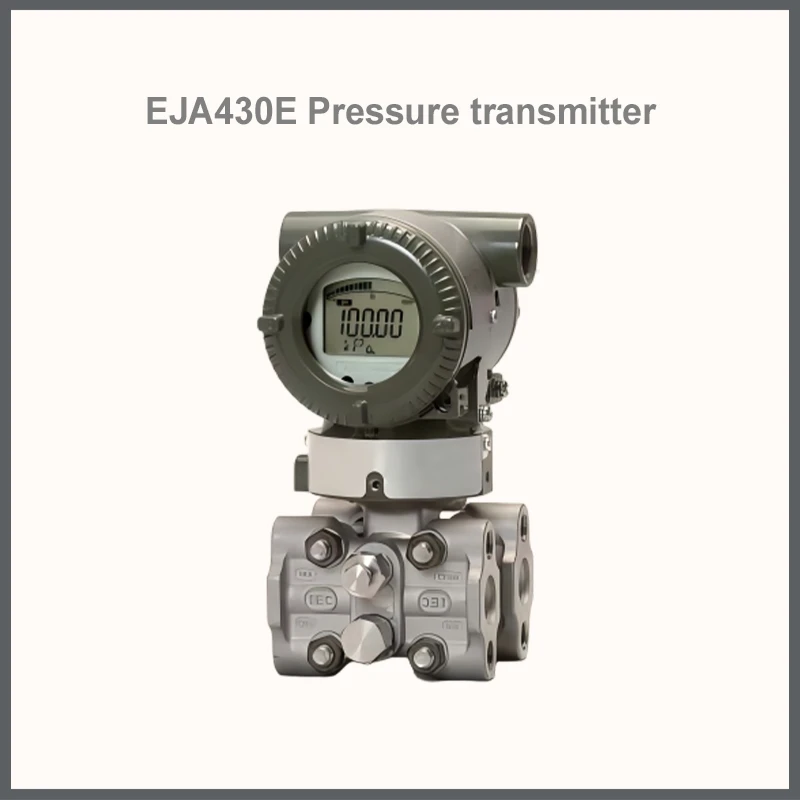

The EJA430E high-performance pressure transmitter uses single-crystal silicon resonant sensor technology and is suitable for measuring the pressure of liquids, gases or steam. The EJA430E converts the measured pressure into a 4~20mADC current signal output, with functions such as fast response, remote setting monitoring, and self-diagnosis. The EJA-E series products provide communication protocols such as BRAIN, HART/HART (1~5VDC) low-power type, FF fieldbus and PROFIBUS PA, and the standard configuration has passed SIL 2 safety certification.

◼STANDARD SPECIFICATIONS

For fieldbuses with the "G" symbol, see GS 01C31T02-01CN for FF communication; see GS 01C31T04-01CN for PROFIBUS PA communication.

◼PERFORMANCE SPECIFICATIONS

Unless otherwise specified, the range is usually adjusted based on the zero point, linear output, wetted parts material code "S", and the filling fluid is silicone oil.For FF fieldbus and PROFIBUS PA

communication protocols, use the calibration range instead of the range in the following specifications.
