◼PRODUCT DESCRIPTION

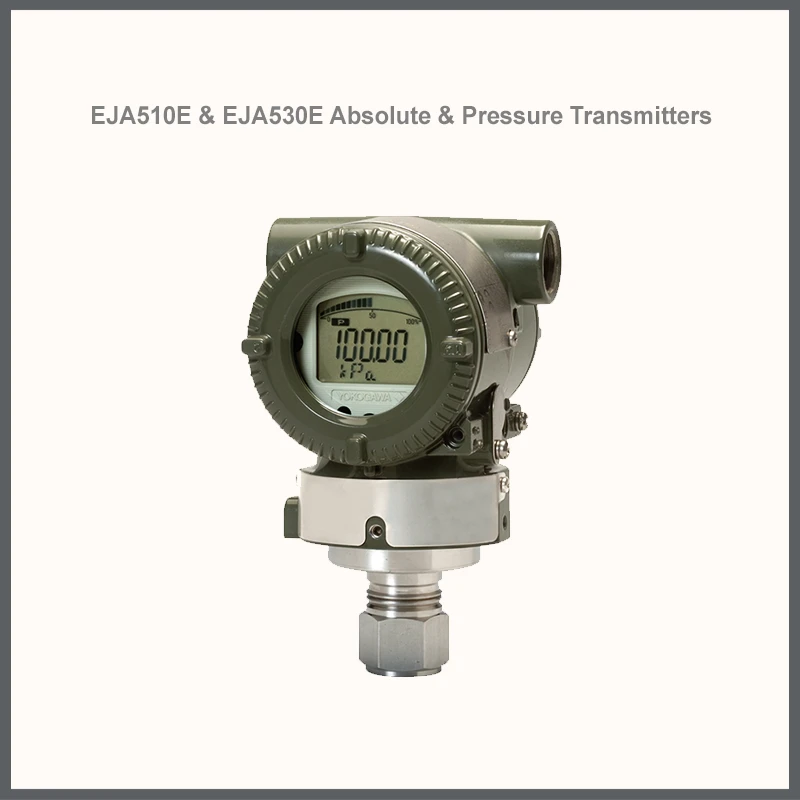

EJA510 E/EJA530 E high-performance absolute pressure and pressure transmitters use single crystal silicon resonant sensor technology and are suitable for measuring the flow, level, density and pressure of liquids, gases or steam. EJA510E/EJA530E converts pressure into 4~20mADC current signal output, with fast response, remote setting, self-diagnosis and other functions.

EJA-E series products provide BRAIN, HART/HART (1~5VDC) low power consumption, FF fieldbus and PROFIBUS PA communication protocols, and the standard configuration has passed SIL 2 safety certification.

◼STANDARD SPECIFICATIONS

For fieldbuses marked with the “◊” symbol, refer to GS 01C31T02-01CN for FF communication and GS 01C31T04-01CN for PROFIBUS PA communication.

(For EJA510E, the measured value is an absolute pressure value with a lower limit of 0)

*: When HG is selected, the maximum pressure is 70 MPa.

◼PERFORMANCE SPECIFICATIONS

Unless otherwise specified, span adjustment is based on zero. Linear output, wetted parts material code "S," and silicone oil is used as the fill fluid.For FOUNDATION fieldbus and PROFIBUS PA communication protocols, use the calibration range instead of the span in the following specifications.
