◼PRODUCT DESCRIPTION

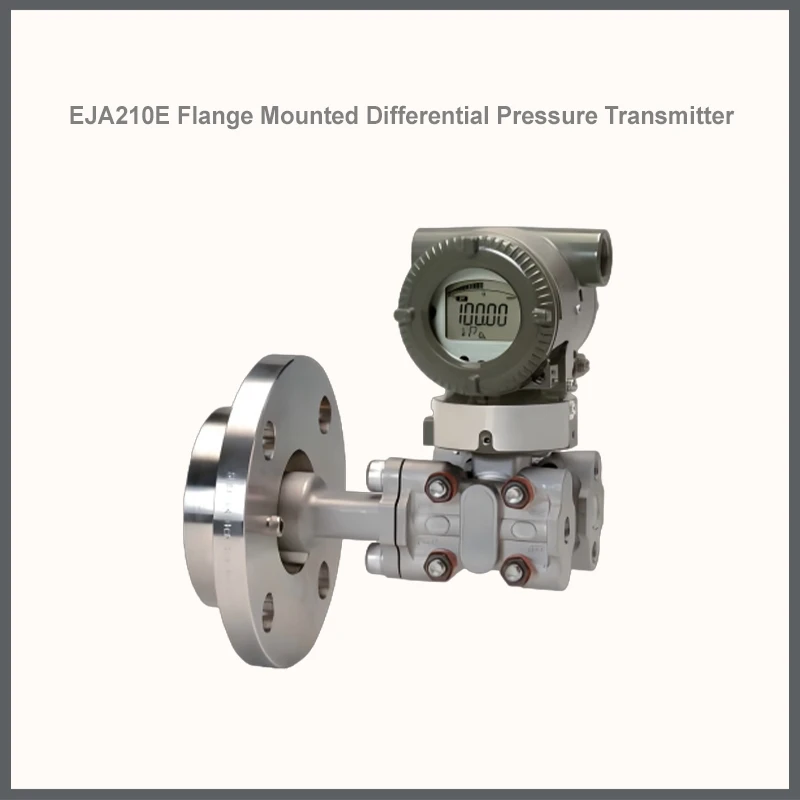

The EJA210E high-performance flange-mounted differential pressure transmitter uses single-crystal silicon resonant sensor technology and is suitable for measuring the density of crystalline solids or precipitated liquids. The EJA210E converts the measured differential pressure into a 4~20mADC current signal output, which can measure, display or remotely monitor static pressure. It has functions such as fast response, remote setting, and self-diagnosis.

The EJA-E series products provide communication protocols such as BRAIN, HART/HART (1~5VDC) low-power type, FF fieldbus and PROFIBUS PA, and the standard configuration has passed SIL 2 safety certification.

◼STANDARD SPECIFICATIONS

For fieldbuses with the "G" symbol, see GS 01C31T02-01CN for FF communication; see GS 01C31T04-01CN for PROFIBUS PA communication.

◼PERFORMANCE SPECIFICATIONS

Unless otherwise specified, the range is usually adjusted based on the zero point.Linear output, 3-inch flat flange type liquid contact part code SW, sealed liquid code B.For FF fieldbus and PROFIBUS PA communication protocols, use the calibration range instead of the range in the following specifications.
